Operators often see cracks and damage in ladle shrouds, long nozzles, and refractory parts. This happens because of a few main reasons:
· Fast temperature changes can cause thermal shock and peeling.
· Mechanical stress comes from handling, hitting, or working forces.
· Hot slag and molten steel can wear down and get into the parts.
· Material problems like tiny holes or mistakes made during making.
· Issues with design, how things line up, or how they fit together.
Knowing these reasons helps teams stop corrosion, breaks across the part, and chemical damage. This helps ladle shrouds last longer.
Key Takeaways
· Quick temperature changes can cause thermal shock. This can crack ladle shrouds. Heating slowly and checking the temperature can stop this damage.
· Mechanical stress from moving and using parts can cause cracks. Storing parts carefully and handling them right helps lower this risk. Installing them the correct way also helps.
· Hot slag can wear down and get into refractory materials. This makes them weaker. Using strong materials and checking slag conditions can protect the parts.
· The quality of materials is important. Good raw materials and careful making of parts help stop cracks. Having the right amount of porosity makes parts stronger and better at handling shock.
· Good design and alignment lower stress and stop leaks. Smooth shapes and tight fits help keep ladle shrouds and nozzles strong. Checking them often also helps.
1. Thermal Shock
Temperature Changes
When the temperature changes quickly, it puts stress inside refractory materials. During ladle preheating, the working layer gets hot on one side and stays cool on the other. This big difference in temperature causes strong pulling stress at the top of the working layer. Sometimes, this stress can get as high as 39.06 MPa. Damage often starts at the top and near the sidewall burner nozzles. If the ladle heats up too fast, alumina-magnesia castables get stiffer but weaker. The material turns more brittle and can break more easily. When steel is poured, the ladle shroud faces sudden heat, which also builds up stress.
Tip: Teams should watch temperature changes during preheating and pouring. Using thermal imaging cameras can help find hot spots and uneven heating. These signs show where cracks might happen.
Crack Formation
Thermal shock cracks show up a lot in high-temperature furnace linings and steel ladles. These parts go through fast heating and cooling many times. When the temperature changes too quickly, the refractory grows or shrinks more than it can handle. If the material is brittle, especially under 1100°C, cracks form easily. Big parts, uneven heating, and outside forces make cracking worse. Changes in the material’s structure can also raise the risk.
· Common scenarios for thermal shock cracking:
1. Ladle preheating with fast temperature rise.
2. Steel pouring with sudden molten metal exposure.
3. Quenching or cooling steps in steelmaking.
4. High-temperature furnace linings in steel, cement, glass, and ceramics.
Thermal shock can cause early failure with small and large cracks. Operators often see pieces breaking off, falling apart, and cracks along the ladle shroud and nozzle. Checking often and tracking temperature changes helps teams stop damage before it gets worse. Using materials that handle thermal shock better and heating slowly can help lower the chance of cracks.
2. Mechanical Stress
Handling Damage
Mechanical stress often starts when workers do not handle parts carefully. Sometimes, workers drop or hit the ladle shroud by mistake. This can chip, crack, or even break it before use. Teams may forget how important good storage is. If the storage area is wet or rough, the refractory gets weaker. This makes it easier to crack later.
Operators should do these things to stop handling damage:
· Keep ladle shrouds in dry, clean places.
· Teach workers to lift and move parts the right way.
· Check each part for chips or cracks before using it.
· Heat the ladle shroud slowly so it does not crack.
Tip: Handle parts with care and heat them slowly. This helps stop early cracks and makes the ladle shroud last longer.
Operational Impact
Mechanical stress keeps happening when the equipment is used. Taking off coatings or moving the ladle shroud can hurt the refractory. Forces between the upper nozzle and ladle bottom can cause stress. These forces come from heat changes, steel shell growth, and heavy loads.
These types of mechanical stress often cause cracks or bending:
· Pulling forces from blocked thermal expansion.
· Pushing forces that make the part bend for good.
· The steel shell grows wider and faces thermal shock.
The table below shows how these forces can hurt the structure:
|
Distortion Force / Cause
|
Effect on Structural Integrity
|
Mechanism / Description
|
Mitigation / Design Considerations
|
|
Thermal gradients (radial differences)
|
Radial cracks in refractory plates
|
Expansion/contraction causes tensile and hoop stresses
|
Optimize design, use tough materials, control cooling rates
|
|

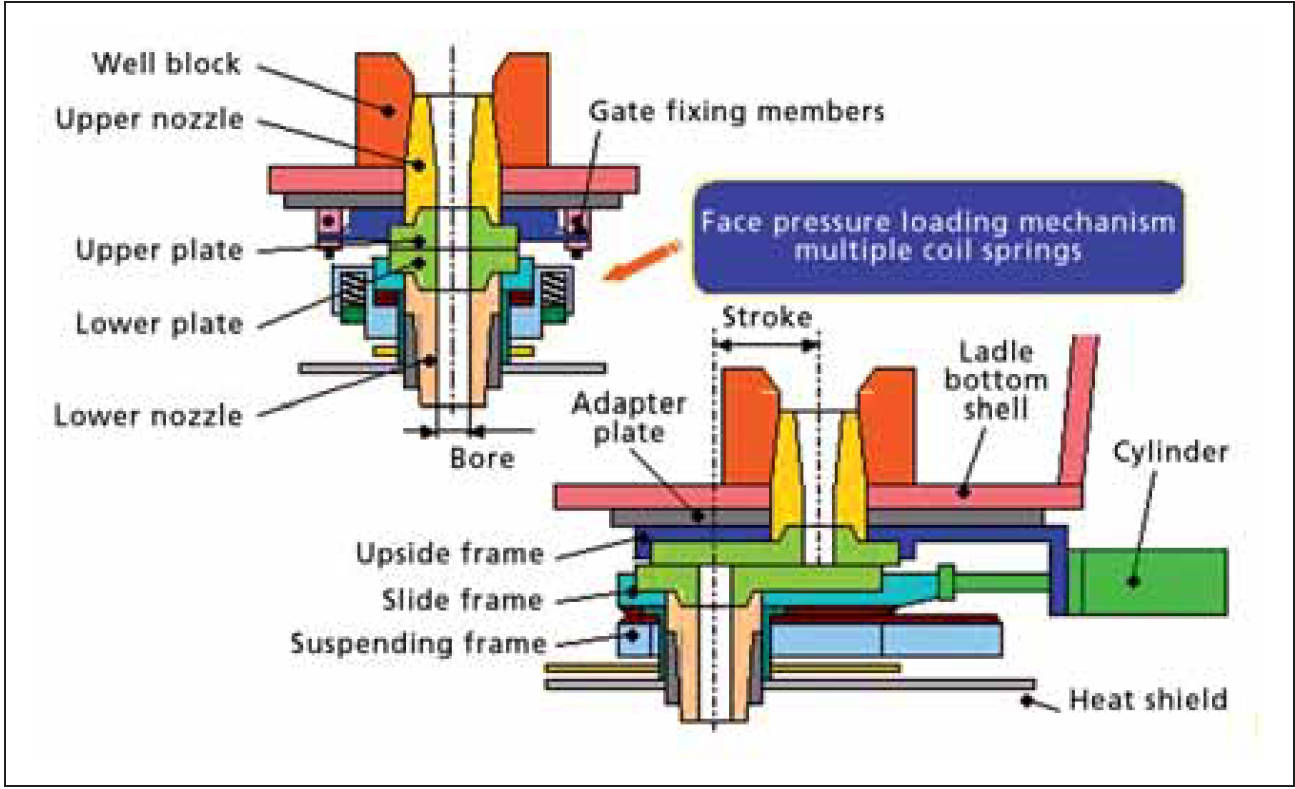

High bolt preload on cassette assembly
|
Rare radial cracks in plates
|
Bending stresses from bolt tightening and expansion
|
Adjust bolt tightening, improve cassette shape
|
|
Thermal contraction during cooling
|
Radial cracks from inner bore
|
Cooling causes tensile stress in Y-direction
|
Slow, uniform cooling
|
|
Mechanical stresses from vertical loads
|
Transverse and radial cracks in middle plate
|
Compressive stresses from molten steel cause tensile stresses
|
Increase preheating temperature and operation time
|
|
Crack formation and oxidation
|
Corrosion, leakage, steel quality degradation
|
Cracks allow air ingress, causing oxidation and contamination
|
Use anti-oxidizing additives, improve composition
|
|
Connection type (conical vs butt)
|
Stress distribution and stability
|
Conical induces tensile stress; butt works under compression
|
Select connection type based on expansion and load limits
|
Operators who know about these stresses can pick better materials. They can also install parts better and lower the chance of cracks. Checking often and lining up parts right helps keep steelmaking equipment strong.
3. Slag Erosion
Slag Penetration
Hot slag attacks the outside of ladle shrouds and nozzles. The molten slag moves over the refractory and brings heat and chemicals. These things break down the material. Slag penetration happens when liquid slag gets into small pores and cracks. This changes the inside of the refractory and makes a weak layer. That weak layer can break apart easily.
· Slag temperature and thickness decide how fast slag moves in.
· Chemical reactions between slag and refractory make new compounds.
· Pores and the inside structure let slag get in and spread.
· Molten steel and slag flow scrape the surface and cause more erosion.
· Chemical, mechanical, and heat attacks together make the damage happen faster.
Operators often see melting at the slag line and deep cracks on the sides. The slag line gets soft and weak, so pieces can fall off. Checking often helps teams find early signs of slag penetration. They can fix problems before big damage happens.
Note: Picking refractory materials with fewer pores and using coatings can slow slag penetration. This helps the parts last longer.
Thermal Peeling
Thermal peeling, or spalling, hurts the sides and slag line of ladle shrouds and nozzles. Fast temperature changes during tapping or when steel flows out make the surface expand and shrink quickly. This stress causes the material to crack and flake off.
· High slag temperature and fast reactions make peeling more likely.
· Big temperature changes cause thermal shock and lead to spalling.
· Mechanical shock from scrap charging and steel flow causes scraping.
· Oxidation and rough surfaces make the refractory even weaker.
· Damage shows up as cracks, flakes, and rough spots at the slag line.
Chemical attack and slag damage happen when the refractory dissolves or makes new compounds after touching molten steel or slag. These changes make the material weaker and easier to crack. Operators should pick refractories that resist chemical attack. They should also use surface treatments to protect against slag erosion.
Tip: Watching slag temperature and flow, and using strong refractory materials, helps stop thermal peeling and side wall cracking.
4. Material Quality
Manufacturing Defects
Material quality is very important for how long ladle shrouds and nozzles last. Cracks often begin because of mistakes made during manufacturing. These mistakes can happen from using bad raw materials or errors in making the parts. Operators notice more cracks when impurities like K₂O and Na₂O are in the material. These impurities make stress inside the part and make sintering worse. If the part shrinks unevenly while drying or firing, cracks can form. This happens when the mix or particle size is not controlled well.
Problems in the process can cause even more trouble:
· If materials are not mixed well, weak spots appear.
· Low pressure during molding leaves empty spaces inside.
· Firing at the wrong temperature or with uneven heat causes stress.
· Cracks can show up during preheating, firing, or cooling.
Tip: Teams should pick good raw materials and watch every step. Mixing, molding, and firing must be done carefully to stop cracks.
Porosity Effects
Porosity means there are tiny holes in the material. Porosity changes how the part handles heat and stress. More porosity helps the part take thermal shock better and not crack. But too much porosity makes the part weaker and easier to wear out. The table below shows how porosity changes important properties:
|
Material Property
|
Relationship with Porosity
|
|
Thermal Shock Resistance
|
Increases with porosity
|
|
Volume Density
|
Decreases with porosity
|
|
Strength
|
Decreases with porosity
|
|
Wear Resistance
|
Decreases with porosity
|
Operators need to balance porosity for the best results. They can change particle size and binder amount to control porosity. New ideas like nanotechnology and self-healing refractories help make parts stronger and stop cracks. Smart refractories with sensors let teams watch for cracks in real time and act fast.
Note: Checking parts often and using strict quality rules helps find problems early. This makes ladle shrouds and nozzles last longer and keeps work running smoothly.
5. Design and Alignment
Ladle Shroud Alignment
It is very important to line up the ladle shroud correctly. This helps stop cracks and leaks. If the design has sharp corners or tricky shapes, stress builds up there. These spots can get microcracks, mostly at grain boundaries in the refractory. If the ladle shroud is not straight up and down, or if gaskets get squished, pressure is not even. This makes weak spots where cracks can start and spread. Even small mistakes in alignment can let molten steel leak out. Leaks make damage happen faster and the ladle shroud does not last as long.
Tip: Make designs with smooth curves, not sharp corners. Always check that the shroud is straight when you install it. This lowers stress in the part.
A good ladle shroud design has smooth changes and strong support. This helps it handle heat and force better. Teams should use tools and look closely to make sure the shroud is straight and tight. Checking often helps find small problems before cracks show up.
Fitment Issues
Fitment problems can clog the nozzle and add stress. If sleeves, plugs, or blocks do not fit tightly, they move around. This movement puts stress on the ladle shroud or nozzle and can cause cracks. Thin refractory parts, like sleeves under 30 mm, break more easily. Using too much or too little mortar also makes joints loose or too tight. This raises the chance of cracks.
Nozzle clogging happens when solid inclusions, like alumina, stick to the nozzle. Many things can make clogging worse:
1. Carbon refractories lose carbon at high heat.
2. Gas forms on the nozzle surface.
3. Inclusions stick because of energy changes.
4. Lower temperatures let inclusions stick.
5. Turbulence from early clogging makes it worse.
Operators can lower these risks by:
· Making sure all parts fit tightly.
· Using the right amount of mortar.
· Picking thicker, stronger refractory shapes.
· Watching for early signs of clogging and stress.
|
Common Fitment Issue
|
Resulting Problem
|
Prevention Method
|
|
Misaligned shroud
|
Stress, cracks, leakage
|
Use alignment tools, visual checks
|
|
Loose joints
|
Movement, cracking
|
Proper mortaring, secure fit
|
|
Thin sleeves (<30 mm)
|
Higher crack risk
|
Use thicker components
|
|
Poor gasket installation
|
Stress concentration, leaks
|
Careful assembly, quality gaskets
|
Note: Training and careful assembly help teams avoid mistakes. This stops cracks and clogging from happening.
Steel plant teams deal with five big problems. These are thermal shock, mechanical stress, slag erosion, material quality, and design flaws. Each problem makes the ladle shroud and nozzle wear out faster. It also makes leaks more likely. Teams should check for cracks often. They can use ultrasonic and eddy current testing to find cracks early. Operators need to watch downtime and keep track of production. They should plan regular maintenance to stop problems before they get worse. The table below shows how steel flow rate and damage change how long parts last:
|
Steel Flow Rate (tons/min)
|
Typical Lifespan (furnaces)
|
Main Damage Causes
|
|
~4.5 - 4.6
|
5 - 10
|
Perforation below neck, slag line erosion
|
|
~6.0 - 7.5
|
3 - 10
|
Perforation below neck, block detachment
|
Teams can stop leaks by making sure parts line up right. They should use good materials and control temperature during work. Fixing problems early and checking for cracks helps parts last longer and keeps downtime low.
FAQ
What causes most ladle shroud leaks?
Leaks usually start at cracks. These cracks come from thermal shock, bad alignment, or slag erosion. Most leaks happen at the slag line or near joints that are not lined up right. Steel plants say over 60% of leaks begin in these places.
How can teams detect early cracks in nozzles?
Teams use ultrasonic or eddy current tests to find small cracks. These tests help spot cracks before they get bigger. Workers also look at parts often. Many plants take photos of cracks to plan repairs better.
Does material choice affect crack resistance?
Yes, it does. High-quality refractories with fewer pores resist cracks more. Plants using denser materials have up to 30% fewer failures. Picking the right material makes parts stronger and helps them handle thermal shock.
Why does nozzle clogging increase cracking risk?
Clogged nozzles cause uneven pressure and stress. This stress can make cracks or leaks. More cracks show up when inclusions block the nozzle, especially when steel flows fast.
What maintenance steps help prevent cracking?
Teams should check parts often and line up shrouds carefully. They need to control heating rates. Using logs and photos helps track wear. Plants with strict maintenance plans have longer part life and fewer leaks.
